Price: $470.00
(as of Apr 05, 2026 17:36:30 UTC – Details)
Product description
Presentation of Details

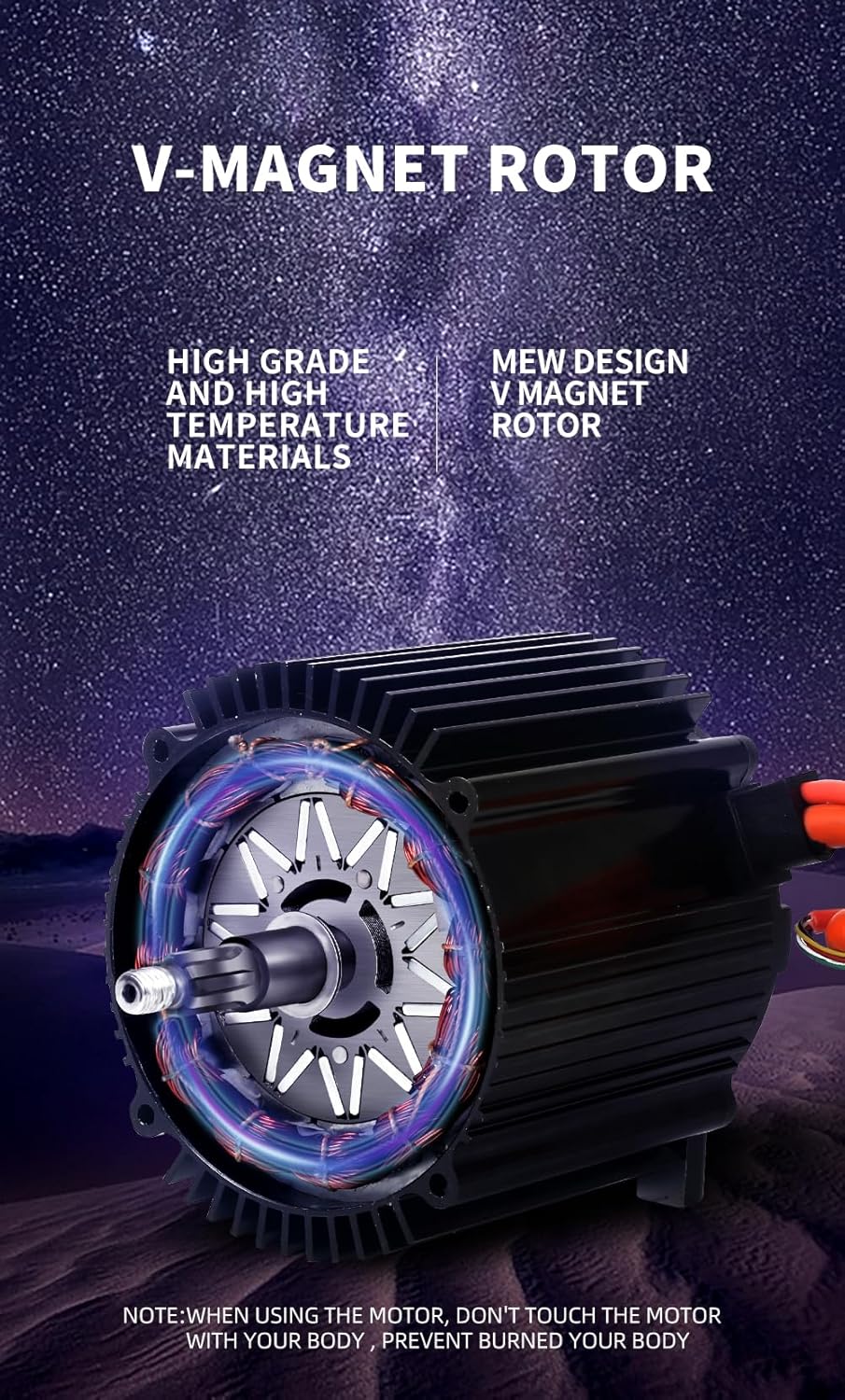

Upgrade V-Magnet Rotor
100% copper wireThe V-shaped magnet rotor and 5 pairs of magnetic poles design ensure smooth, efficient operation under heavy loads.
Upgrade Hall Sensor
This 5000w brushless motor adopts external hall, easy to maintain.Please do not remove the screws.
Controller Instructions

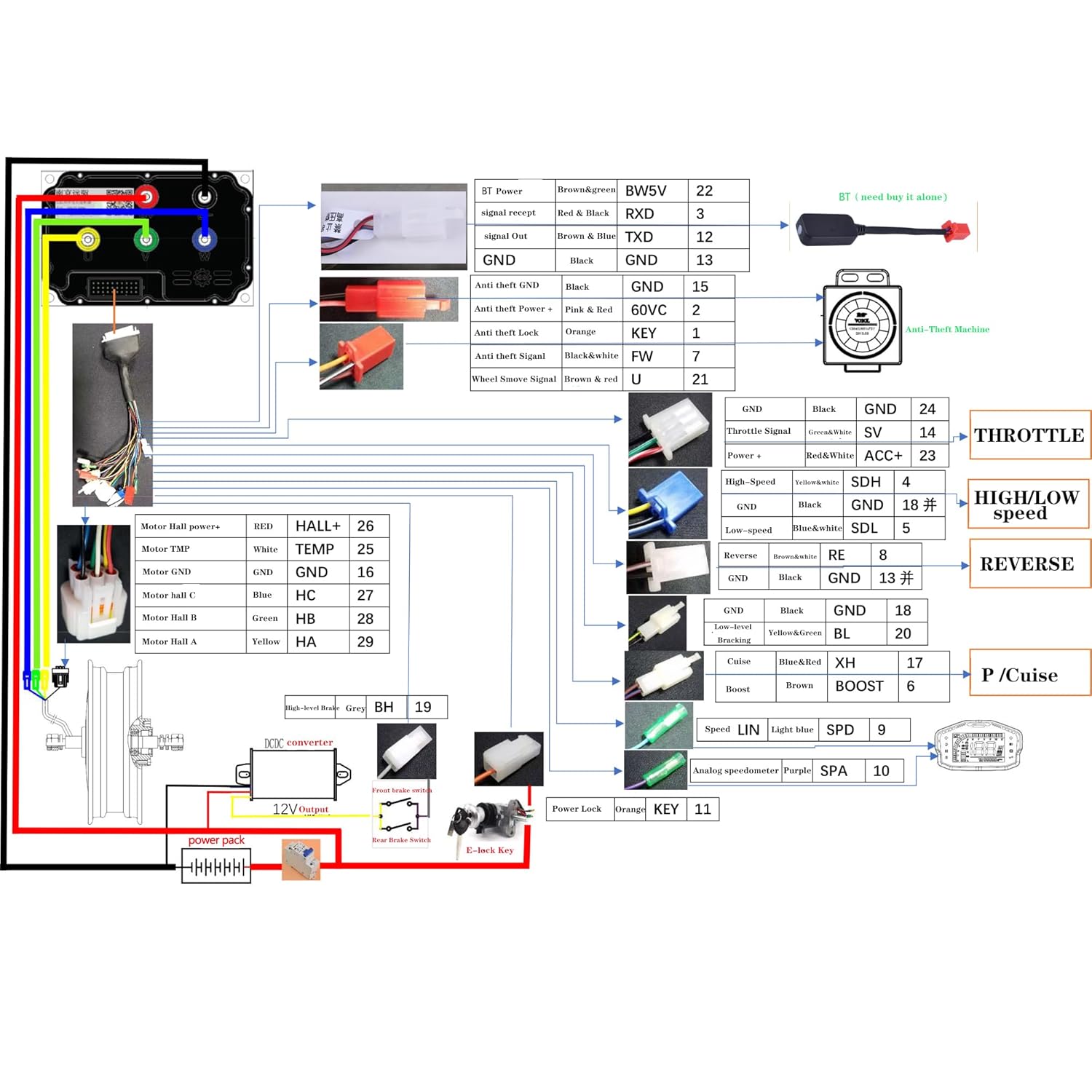

The motor can be connected directly to a Fadrive or kerry controller, but for other controllers, you may need to purchase a separate Hall adapter wire

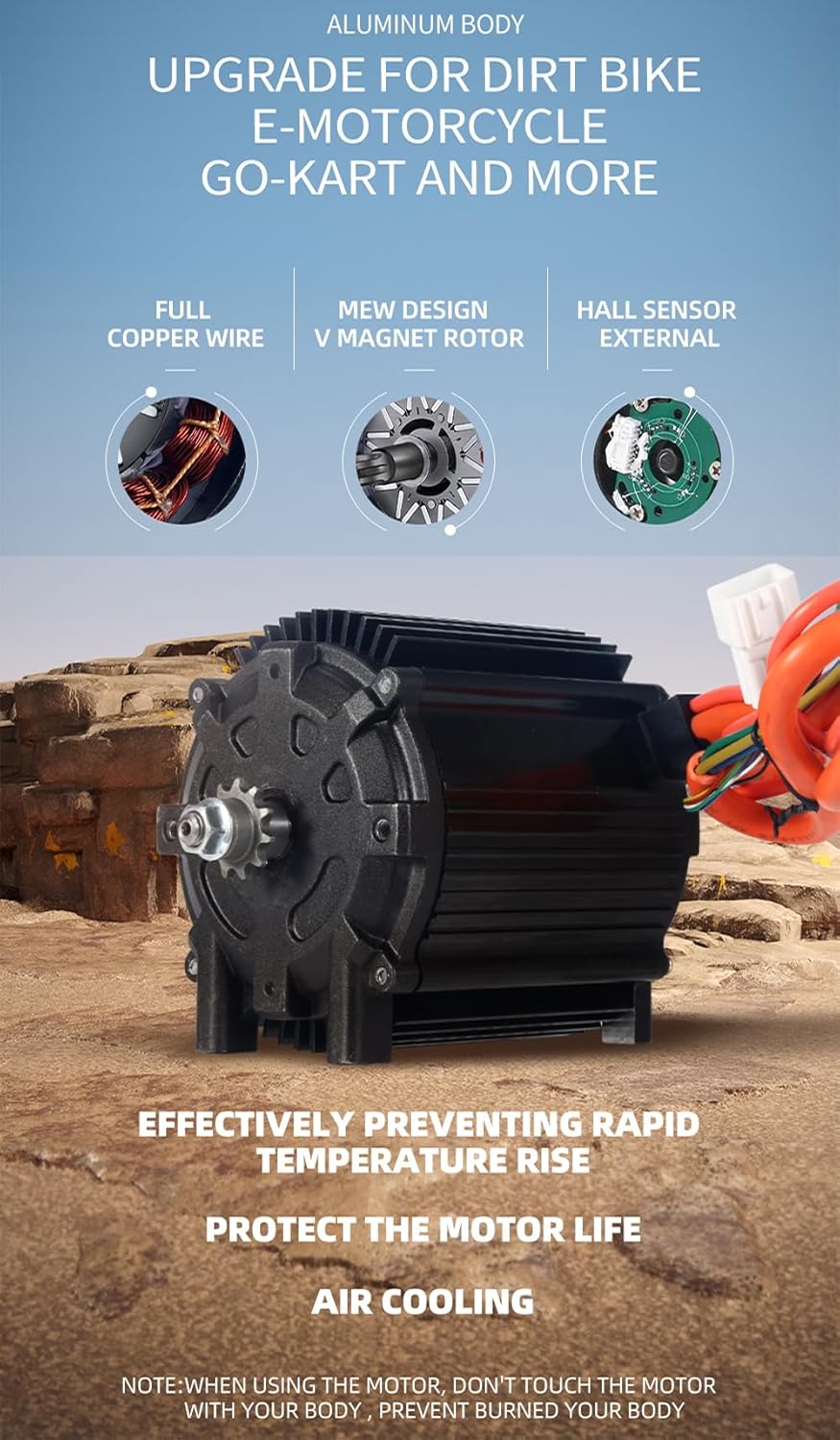

Heat Dissipation function
The aluminum housing with heat sink ensures stability and reliability during long periods of use and extends the life of the motor.
Power to Conquer Terrain
With 5000W continuous power (10000W peak) and 35N·m peak torque, this motor delivers unmatched performance for steep inclines, off-road trails, or high-speed demands. The V-shaped magnet rotor and 5 pairs of magnetic poles design ensure smooth, efficient operation under heavy loads.Built with F-class insulation (155℃ resistance) and IP54-rated protection against dust/water splashes, it integrates a KTY84-130 temperature sensor for real-time monitoring.
Plug-and-Play Design
The complete kit includes 72V motor, programmable controller, ignition lock, and foot pedal throttle. The compact design with 4 mounting holes allows flexible installation on ebike motor kit retrofits, electric motor for bike upgrades, or 72v Mototec systems.Peak power:10KW, Rated speed:5000rpm, Peak speed:8000rpm, Rated Current:60A, Peak Current:80~100A, Rated Torque:8.5N.m, Peak Torque:35N.m, Maximum efficiency:90%, TMP Sensor:KTY84-130, Class:F(155’C), IP:IP54, Cooling:Air cooling.
More Controller Details
After receiving the product, please run the auto-learn function in the APP first. This helps the motor run smoothly and helps prevent uneven operation, shaking and abnormal noises.
If you have any questions about the product, please reach out to us through Amazon. We are here to help.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Installation and usage instructions Merchant Video
Function Configuration & Warnings：For other functional needs, please configure them within the FARDRIVER App according to your specific needs. Non-professionals are advised not to modify other parameters, as this may cause abnormal operation of the motor.
Ideal Applications
The motor kit is engineered for high-performance electric conversions, or replacing Surron motor components. It is ideal for bicycle electric motor kit retrofits, dirt bike motor enhancements (such as MX 650 Razor dirt bike or Moto Tec 72v models), and powering electric dirt bike 72v applications.
How to use the reverse function of the controller？
If you want to use the reverse function, you need to adjust the controller parameters in the FARDRIVER App. Under Functions: Change Backward Pin from 0-NC to PIN8. Under Product: Change BackEnable from 0 to 1.
Why did the motor suddenly stop spinning after it started？
The controller and motor power are large, so the one-time output current of your power pack is too large, which turns on the self-protection. Charge your power pack for a few minutes and it will be ready for normal use.
Why does my electric dc motor turn in the wrong direction and slowly?
Check whether the phase wires and Hall wires are properly connected, disconnect the self-learning wire and connect again, let the motor self-study 10 to 20 seconds, then disconnect it, there is no need to connect it after motor rotates normally.
Is there any parts replacement support for this product after purchase?
We offer compatible replacement parts for end covers, Hall sensors and related components to assist with your maintenance needs within 12 months from the original purchase date.

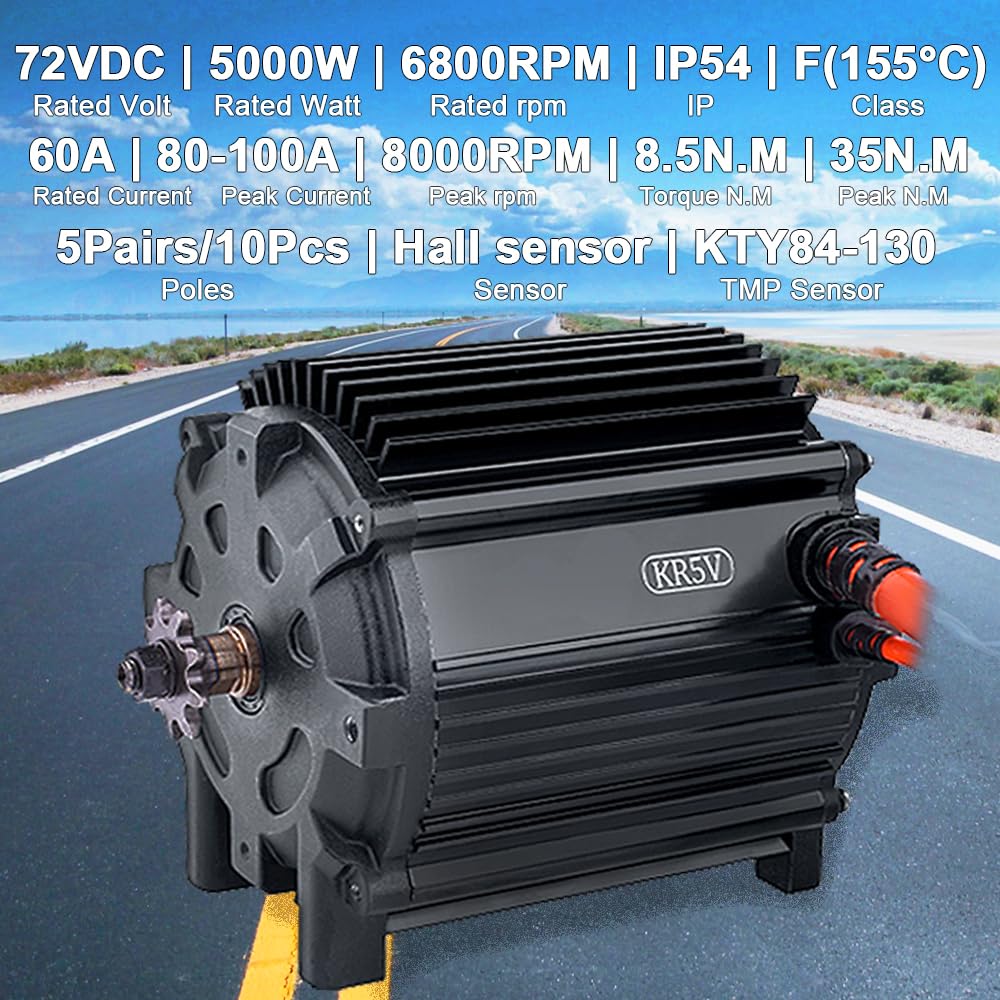

POWERFUL PERFORMANCE：This 72V brushless DC motor delivers 5000W rated power with a peak output of 10000W, providing robust power for various models. Operating at 6800rpm rated speed and reaching up to 8000rpm no-load speed, it meets high-speed requirements. With 8.5N.m rated torque and 35N.m peak torque, it ensures reliable power transmission. The specially designed V-shaped magnet rotor and 5 pairs of magnetic poles configuration enhance operational stability and efficiency.
SMART PROTECTION：Equipped with KTY84-130 temperature sensor and Hall sensors for real-time sensing. Featuring F-class insulation (155℃ resistance) and IP54 protection rating, it effectively resists dust and water splashes. The aluminum housing with external heat sink, combined with full copper wire, delivers excellent heat dissipation and temperature resistance. Hall sensors are conveniently located in the removable back cover for easy maintenance, Please do not remove the screws.

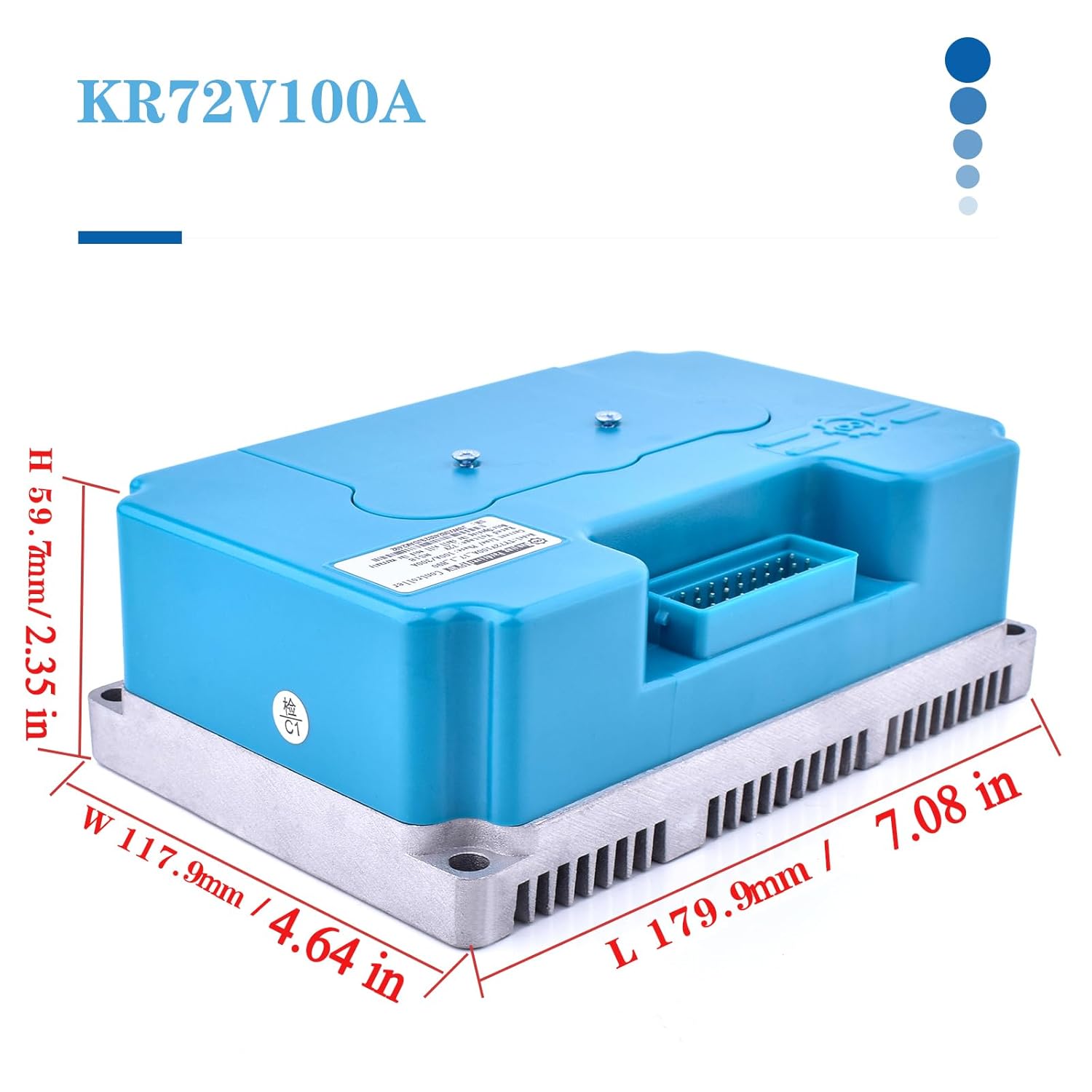

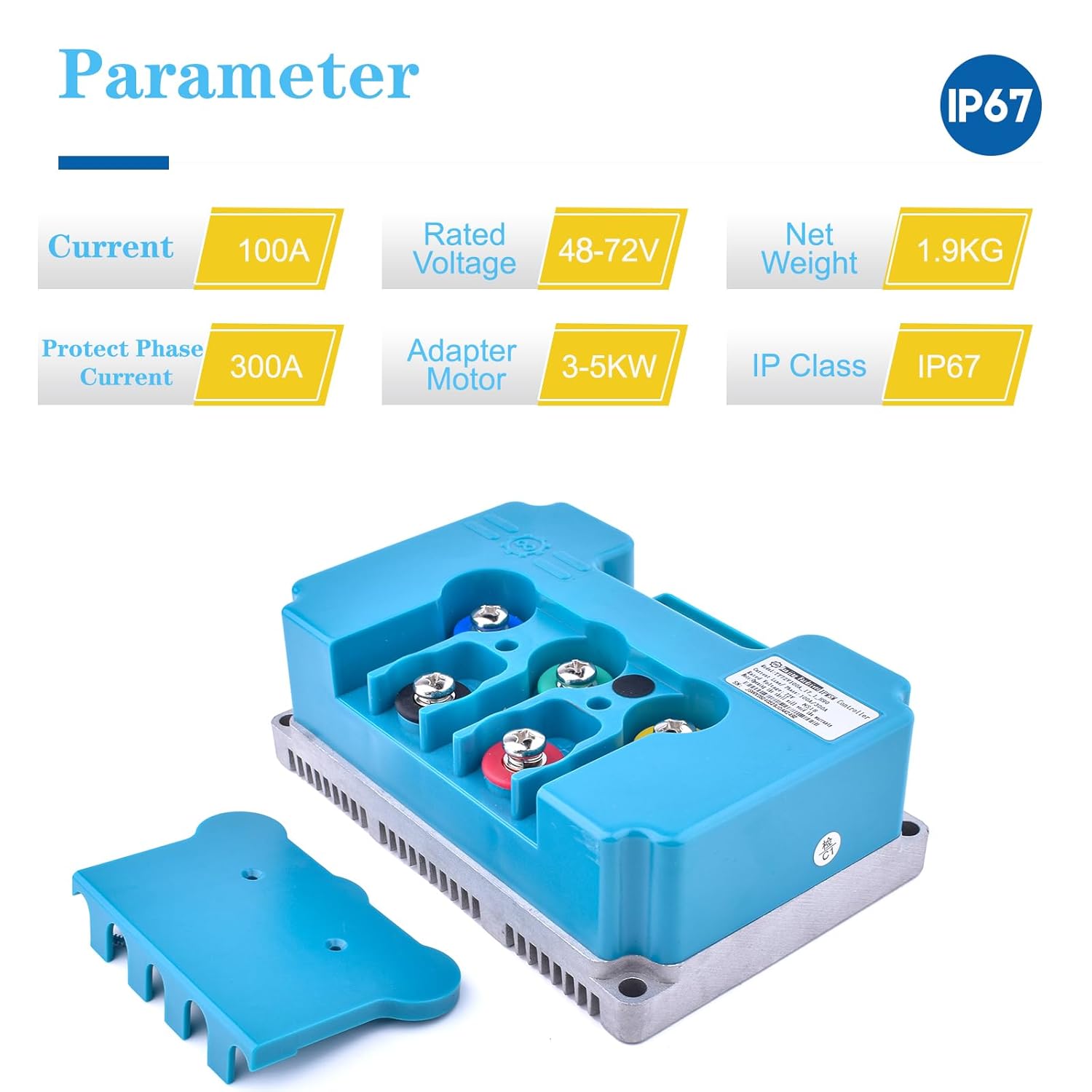

INTELLIGENT CONTROLLER: The 72v 5000w motor kit includes a programmable sine wave controller, which can be flexibly adjusted with personalized parameters. Controller Parameters: Current: 100A, Protect Phase Current: 300A, Rated Voltage:48-72V, Adapter Motor:3-5KW, Net Weight:1.9KG, IP Class:IP67.

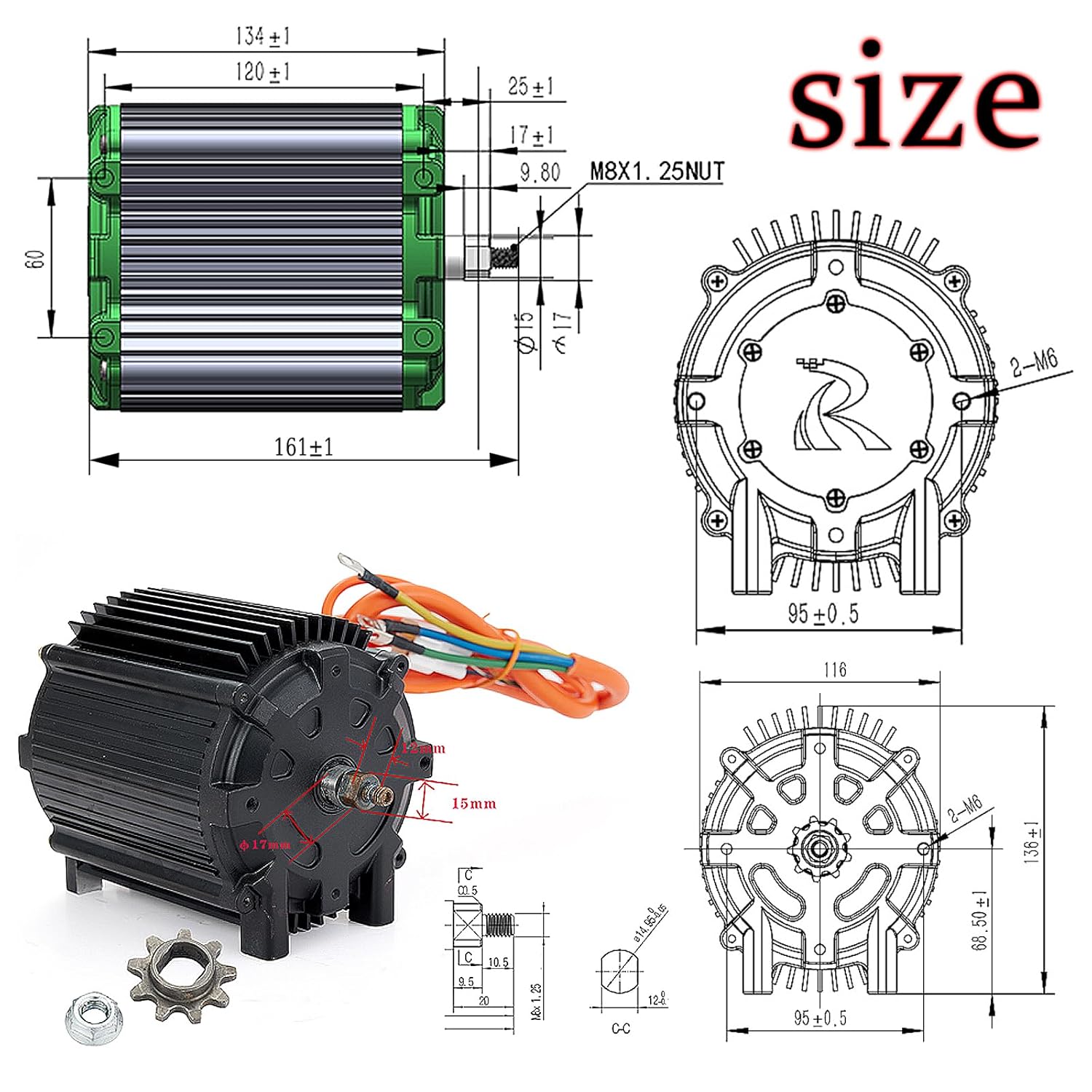

EASY INSTALLATION：The dirt bike motor design with 4 mounting holes facilitates installation on various models. Particularly suitable for go-karts, ATVs, off-road model, and Razor motorcycle conversions, etc. Note that the 72 volt motor surface may become hot during operation – avoid direct contact to prevent burns.

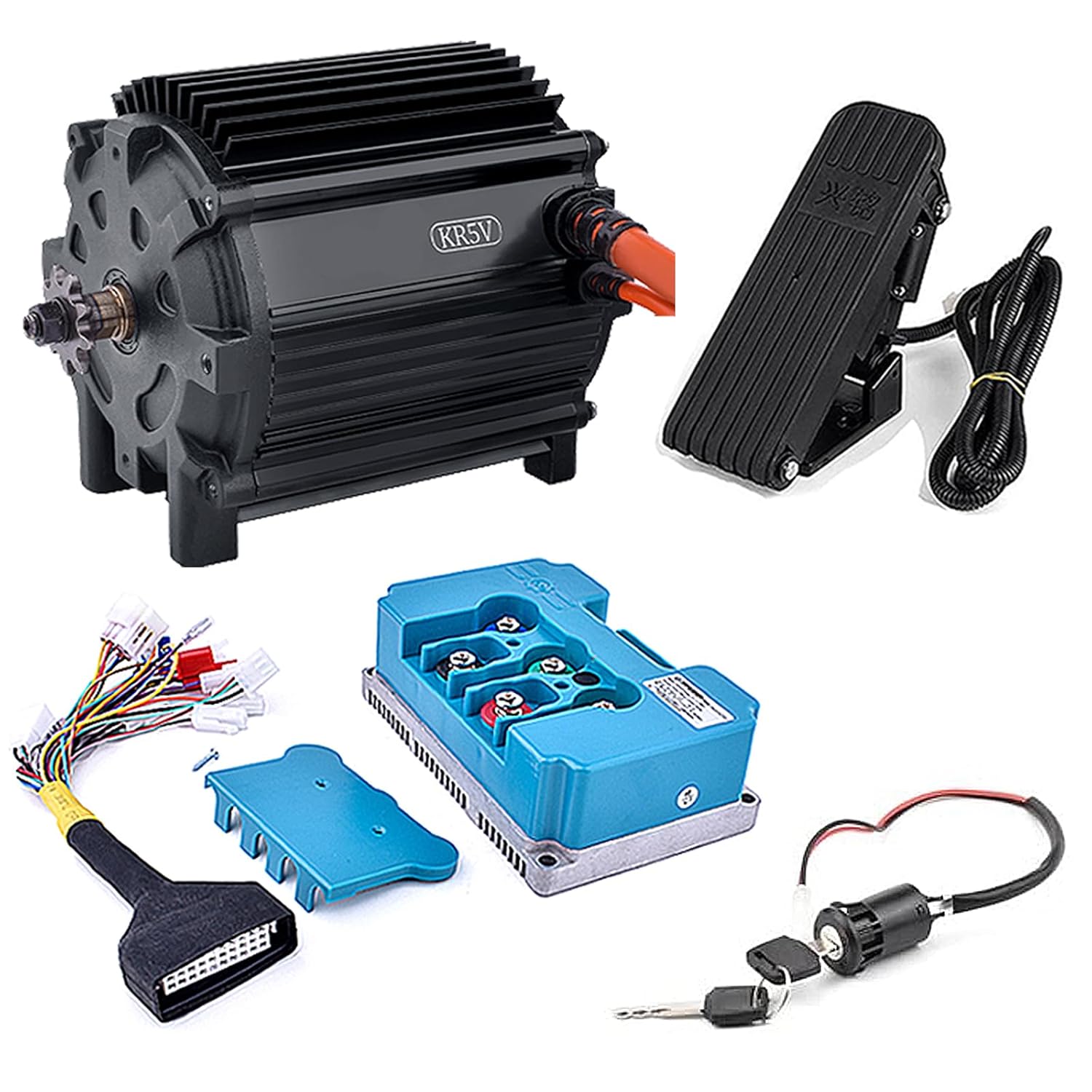

COMPLETE KIT: Electric dirt bike motor kit includes 72V 5000W temperature sensing motor, brushless programmable controller, ignition key , foot pedal throttle. The kit is complete with all the accessories, meets high-performance and customizable assembly requirements
