Complete Electric Scooter Motor Kit, 12V 120W DC Electric Motor High Speed Brushed Motor Controller,12V 12Ah Battery,25 Chain Sprocketfor DIY Electric Bike, Motorcycle, Mini Bike, Tricycle

Price: $185.99
(as of Apr 05, 2026 23:44:14 UTC – Details)

Motor Feature:
1. This product is a small brush motor, made of premium aluminum material.
2. With metal belt pulley, strong, durable for long time use.
3. Rated speed (RPM) : 2500±5% and the maximum speed (RPM) : 3500±5%.
4. The shaft diameter: 8mm (single milling slot 1mm).
5. Suitable for electric scooter, electric bicycle, etc.
Specification:
Condition: 100% Brand New
Item Type: Brushed Motor
Model: ZY6812
Material: aluminum
Color: as picture shown
Rated power: 120W
Rated voltage: 12 (V)
Main application: scooter, electric vehicle
Rated voltage range of 3C: below 36V DC
Rated current: ≤14.3/7.15
Rated speed (RPM) : 2750
maximum speed (RPM) : 3500±5%
No-load current: ≤1.2/0.6
Rated torque: 0.45 nm
Transmission: belt pulley, metal
Shaft diameter: 8mm (single milling slot 1mm)
Efficiency: ≥78%
Shaft diameter: 8mm/0.3inch
Motor fixed holes distance: 36mm/1.4inch


Controller Specs:


Material: Aluminium alloy
Gross Weight: 110g/3.9oz
Rated Voltage: 12V
Rated Power: 250W
Undervoltage: 9.5V
Current Limiting: 13.5A-16A
Low Brake

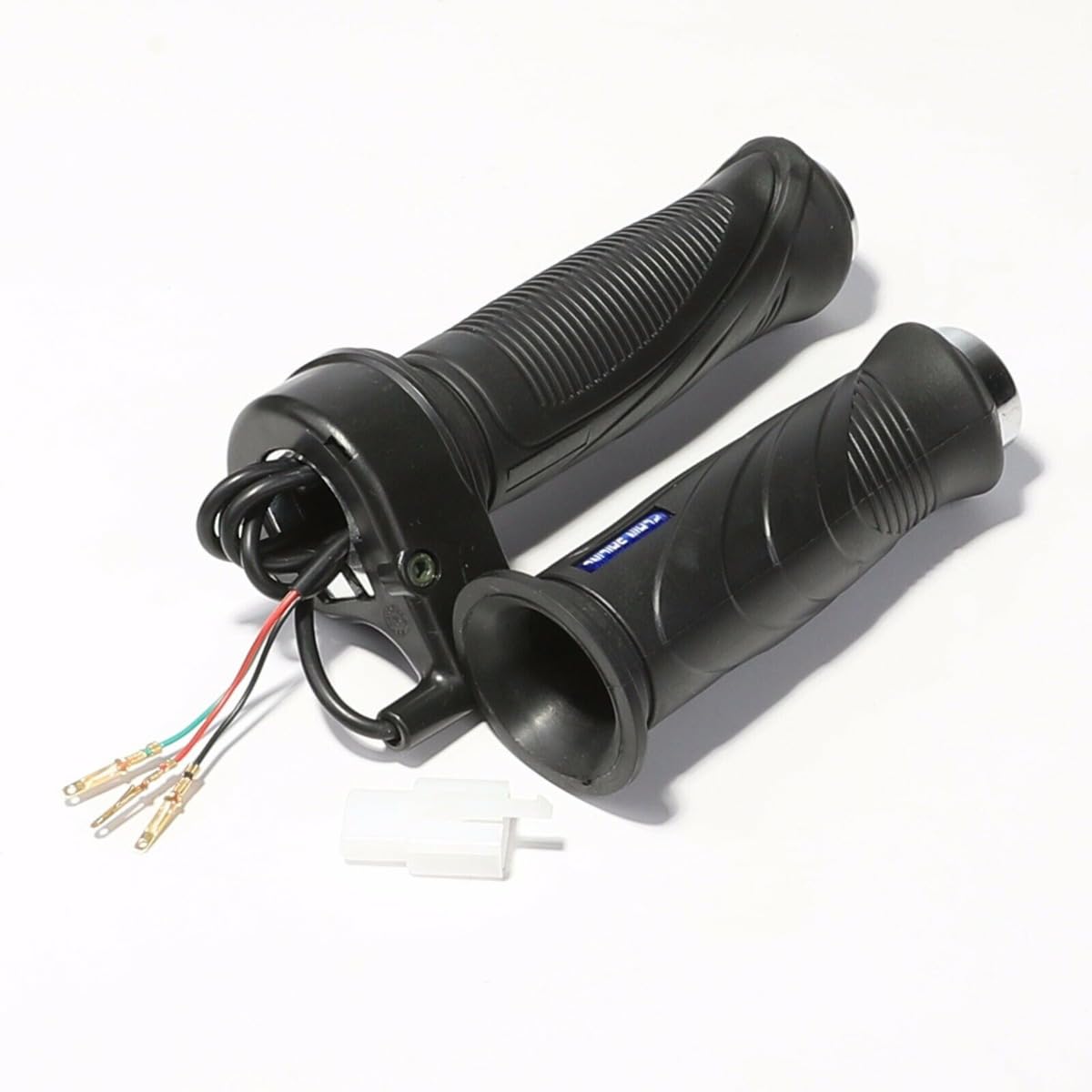

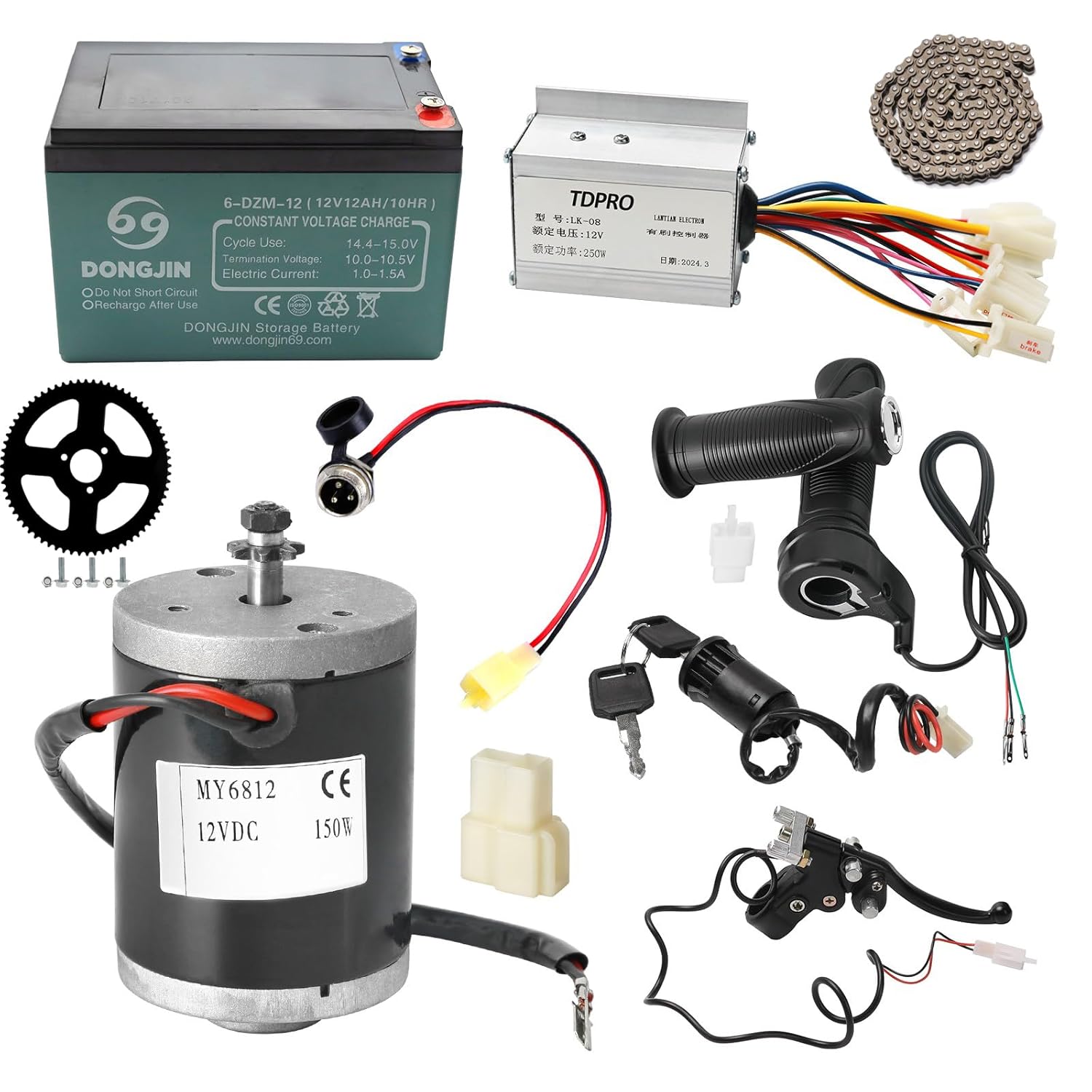

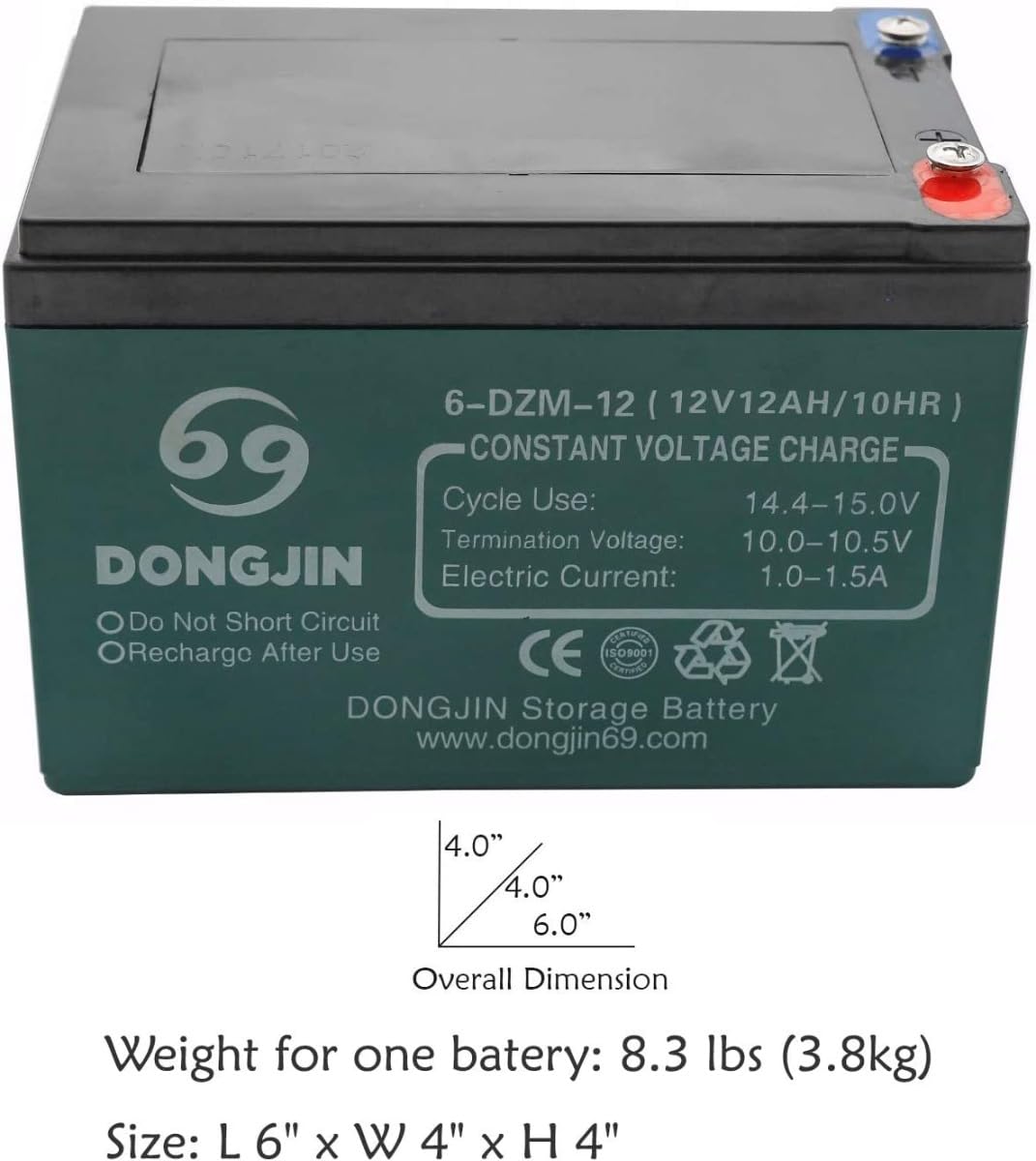

Package includes : 1x Motor, 1x Speed Controller, 1x throttle grips, 1x charging port, 1x brake lever, 1x 12v 12ah 6-DZM-12 Battery, 1x key switch, 1x 25H Chain, 1x 25H 68T Sprocket

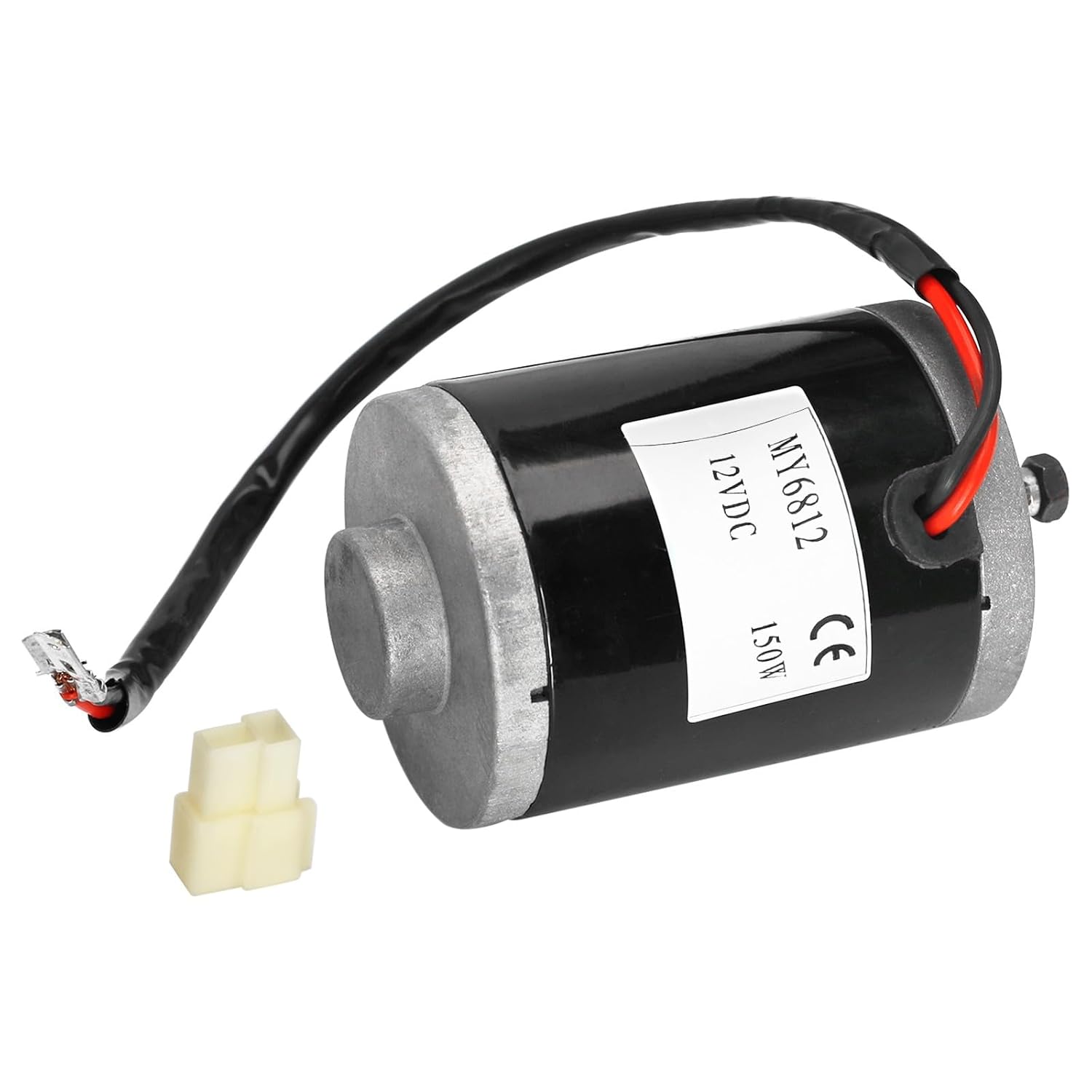

High Performance Brushed Motor: The MY6812 12V 120W Brushed Motor is designed for exceptional performance, with a rated speed of 2750RPM and a maximum speed of 3500±5% RPM. This powerful motor delivers reliable and consistent performance, making it ideal for electric scooters, electric bicycles, and various other applications. Experience high-speed and efficient power output with this premium brushed motor.
25H 7T sprocket, 8mm Shaft
Versatile Application: With a rated power of 120W and a rated voltage of 12V, this brushed motor is suitable for a wide range of applications, including scooters and electric vehicles. Whether you’re looking to upgrade your existing electric bike or enhance the performance of your scooter, this motor offers versatile compatibility and reliable . Enjoy the convenience of a motor that meets your specific needs and delivers optimal performance.
PERMANENT MAGNET DC MOTOR: This electric motor for scooter is a permanent magnet DC motor. The permanent magnet DC motor can save energy and improve energy utilization, has the performance of better starting, small size and light weight.
Controller Specs: Rated Voltage: 12V Rated Power: 250W Undervoltage: 9.5V Current Limiting: 13.5A-16A Low Brake
1x Motor, 1x Speed Controller, 1x throttle grips, 1x charging port, 1x brake lever, 1x 12v 12ah 6-DZM-12 Battery, 1x key switch,1x 25H Chain, 1x 25H 68T Sprocket
