Product description
Key Features
– Only for KT Protocol Controller
Important Compatibility Notes (Must Read)
– Must match KT communication protocol controller
– Requires 1-to-4 cable (NOT included in package)
– Confirm both controller & display are KT series before purchase
– Watch homepage video & check controller label to avoid malfunction
– 24V-52V Auto-Identify
Key Highlights
– Smallest KT display (LCD4) with full functionality
– Auto-identify 24V/36V/48V/52V lithium battery
– IP56 Waterproof, wear-resistant & durable
– Split design (host + buttons) for easy operation
– Full Riding Data Display

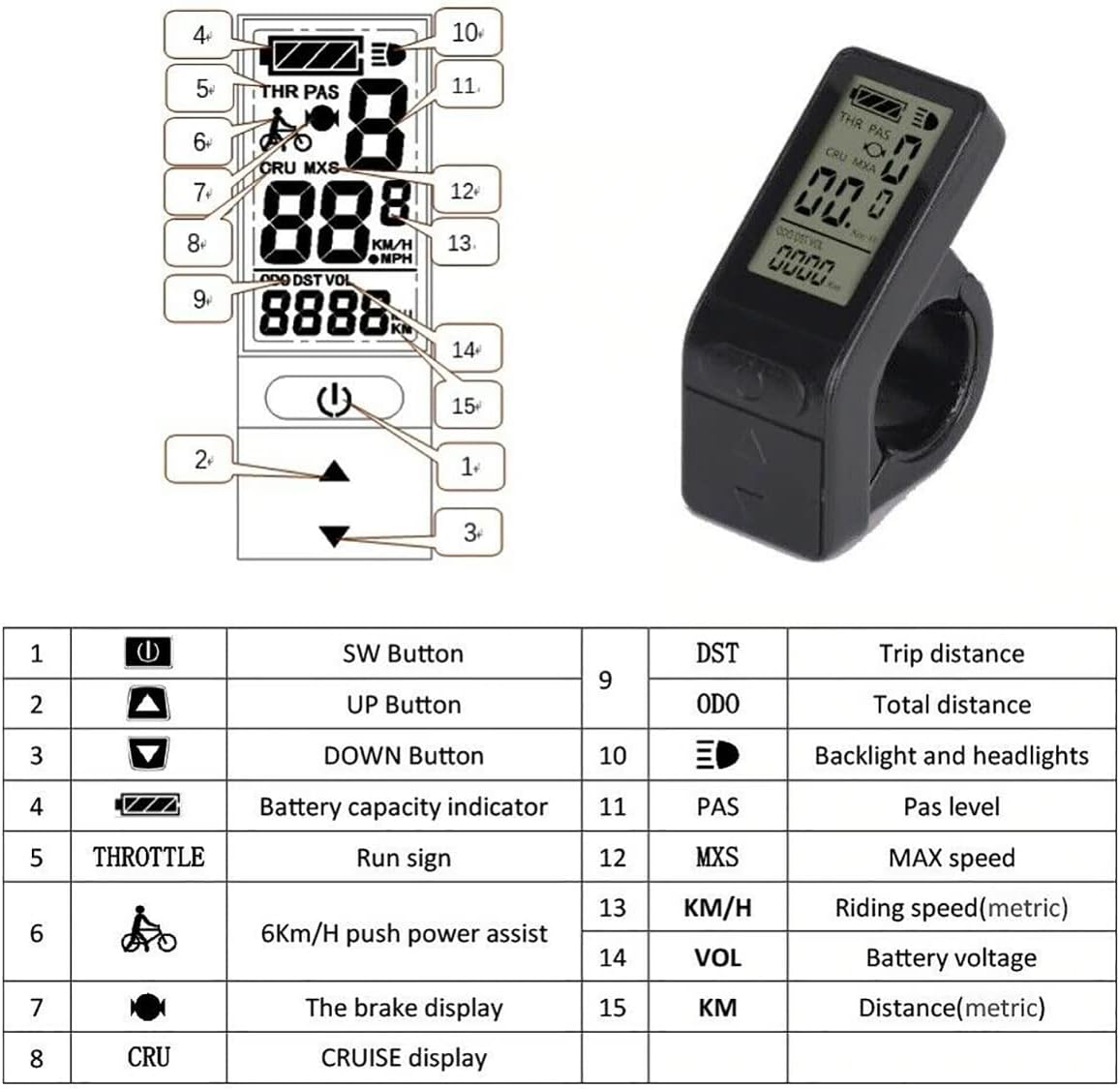

Comprehensive cycling data shows
– Riding speed, single & total mileage
– Riding time, assist gear, motor power & temperature
– Battery voltage & charging status
– Braking status, working environment temperature
Main Description
– Parameter Adjustable (P/C)
Adjustable settings
– Supports P parameter & C parameter modification
– Perfect match for 10/12 magnetic point PAS via C parameter
– Adjust motor, speed measurement, speed limit, battery parameters
– Split Design, Easy Operation
Materials and Design
– High-quality plastic + stable motherboard
– Sleek black appearance, compact size
– Stable base bracket for riding safety
– 5-wire digital communication (KT-LCD4 waterproof connector)
– IP56 Waterproof & Wear-Resistant
IP56 waterproof rating | Durable plastic construction
– Waterproof 5-pin male connector
– Please do not expose the device to rain for extended periods to prevent water from entering the buttons.
– This instrument must not be submerged in water.
Package Details
Package includes

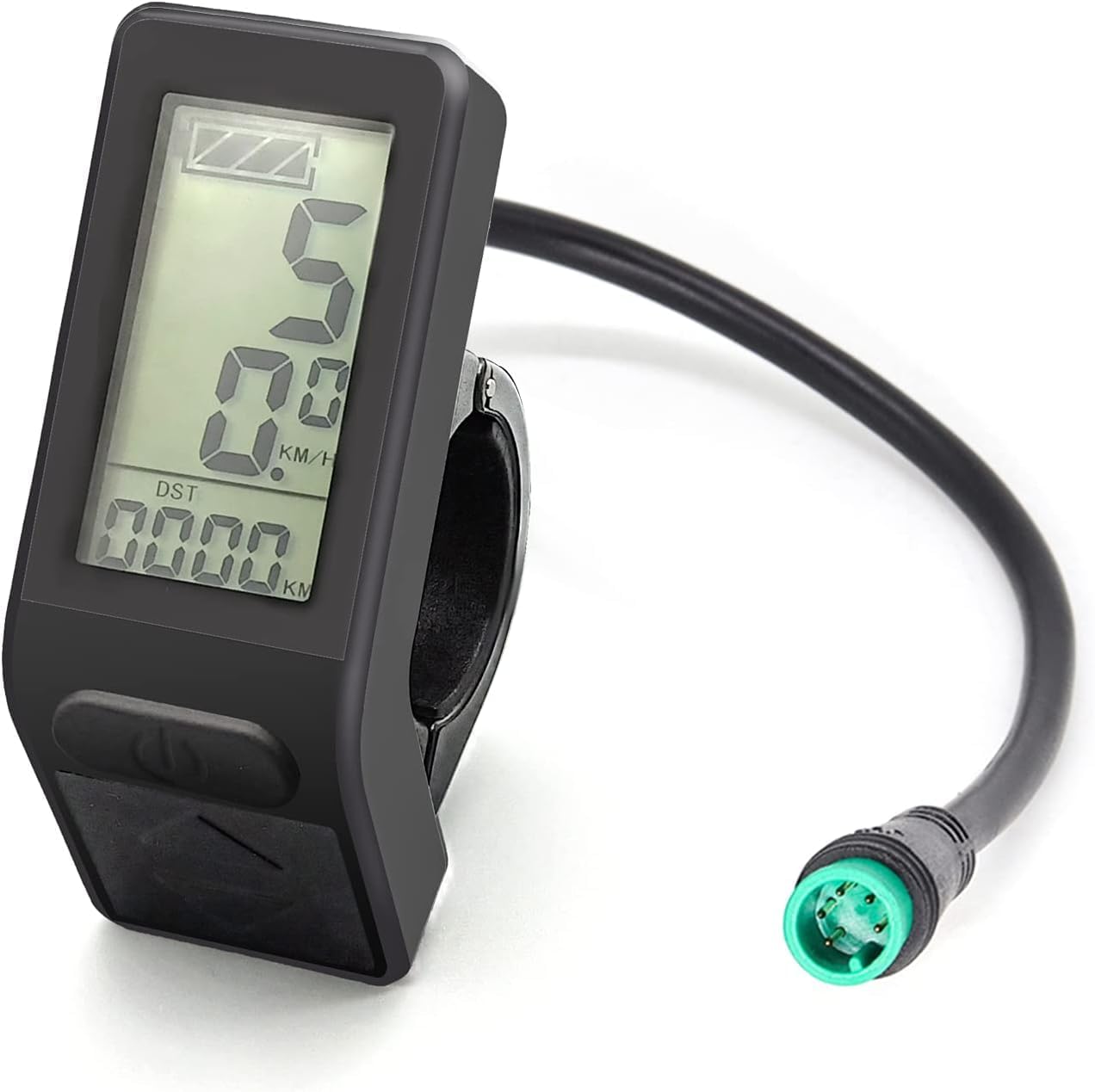

– 1 x Ebike LCD Display Mini Meter (only)
★【Kind Tips】: Please watch the video on the homepage carefully and check the label on the controller so that it won’t work after purchase.This is very important! This meter needs to be equipped with a KT communication protocol controller, and it needs to be connected to 1 to 4 cable to use (not included in the package)
★【Exquisite Display】: At present, the LCD4 display is the smallest one in KT display, very small but very functional., compatible with 24V/36V/48V/52V voltage, can automatically identify your lithium battery and adjust itself
★【Reliable Quality】: This electric bicycle LCD display is made of stable motherboard and comprehensive performance plastic, beautiful, waterproof, wear-resistant, and can record a variety of riding data
★【Data Display】: Riding speed, single mileage and accumulated mileage, riding time, power-assisted gear, motor power and temperature, battery voltage and charging status, braking status and working environment temperature and other riding parameters
★【Parameter Settings】: LCD4 Display also supports the modification of P parameters and C parameters. If your PAS is 10 magnetic points or 12 magnetic points, you can achieve a perfect match by modifying the C parameters. There are a lot of specific tutorials on the video website. Of course, You can also contact us for a tutorial
